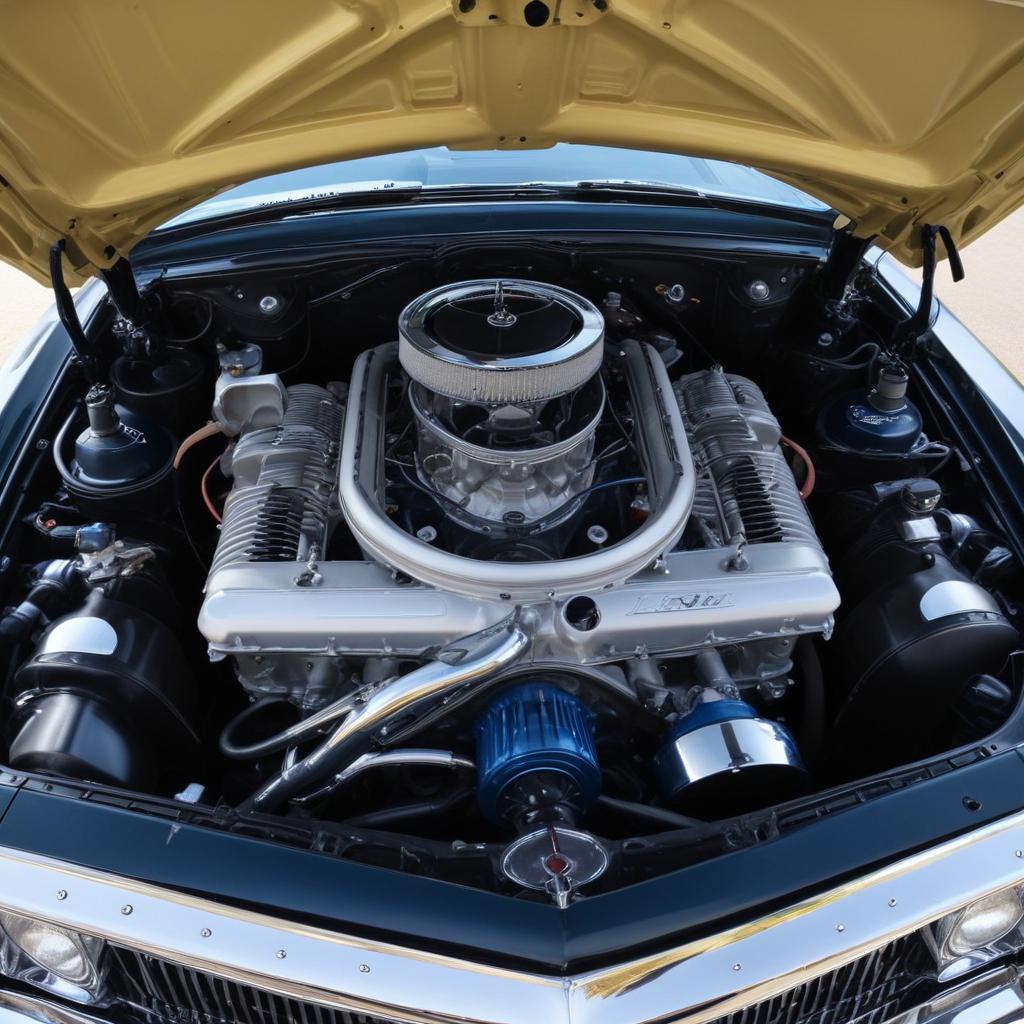

The Nailhead V8 provided the effortless torque that defined the Riviera driving experience.

Buick Riviera V8: Powering Through the Classic Eras – From Nailhead Thunder to Big-Block Glory

ByGrace Sterling

You press the accelerator on a 1970 Gran Sport, the 455 cubic inches under the hood unleash 510 lb-ft of torque, and the Riviera lunges forward like a heavyweight boxer who forgot he’s wearing a tuxedo—this is American power at its most refined, and its most misunderstood.

TL;DR
The Buick Riviera’s V8 story spans four distinct acts over 35 years, and each one tells you something different about America. Act One (1963–1966): The Nailhead era. 401 and 425 cubic inch V8s with 325–360 horsepower, unique valve-in-head design, and torque curves flat enough to land airplanes on . Act Two (1967–1970): The Big-Block peak. 430 and 455 cubic inch engines, 360–370 horsepower, and the legendary 510 lb-ft torque figure that embarrassed Chevrolets and Cadillacs alike . Act Three (1971–1976): The emissions comedown. Same 455 hardware, but compression dropped from 10.25:1 to 8.5:1. Gross horsepower fell from 370 to 315, then net ratings made it look even worse—250 hp on paper, but the bottom end remained stout . Act Four (1977–1985): The downsized years. Buick’s own 350, Oldsmobile’s 403, and finally a 307 V8. Performance faded from 185 hp to 140 hp, but the Riviera refused to die . The GS and Stage 1 packages kept performance alive when the base engines weakened—special camshafts, oversized valves, and 3.42 rear gears turned luxury coupes into sleepers . MaxTrac, Buick’s early traction control system, arrived in 1971 and disappeared by 1974 because nobody bought it . Today, the 1965–1970 Rivieras are the collector sweet spot, 1971–1973 boattails are rising fast, and the 1978–1985 cars remain affordable entry points . This is the story of an engine family that started strong, fought regulations, and never completely surrendered.

Key Takeaways

  • The Nailhead (1963–1966) is Buick’s first great V8: 401/425 ci, 325–360 hp, and a distinctive valve arrangement that made it tall, narrow, and torquier than a diesel locomotive .
  • The 455 (1970–1976) is the peak: 370 gross hp, 510 lb-ft gross torque in 1970. Even after emissions strangled it, the bottom end was bulletproof .
  • GS and Stage 1 packages added serious muscle: .125-inch oversized valves, hotter camshafts, heavy-duty valve springs, and deeper-sump oil pumps. In 1971, Stage 1 made 330 hp when the base car made 315 .
  • MaxTrac (1971–1973) was Buick’s forgotten electronic traction control—a wheel-speed sensor, black box, and ignition interrupt. Road & Track said it was “hardly noticeable.” Buyers said “no thanks” .
  • 1972 is the phantom year: Engines unchanged, but power ratings switched from gross (engine alone) to net (with accessories and exhaust). The 455 “lost” 120 hp on paper. It didn’t lose anything on the street .
  • 1978–1985 Rivieras are the budget classics: 350/403/307 V8s with 140–185 hp, 0-60 in 10–12 seconds, and values from $5,000–$20,000. Not fast. Still cool .
  • Total 455 production across all Buick models was substantial, but Riviera-specific numbers are maddeningly undocumented. Estimate: several hundred thousand Rivieras with 455s, but genuine Stage 1 cars are needle-in-haystack rare .

Act One: The Nailhead (1963–1966) – Buick’s Weird Genius

Here’s what nobody tells you about the Nailhead: it was designed in 1953, and Buick made it work for thirteen years.

The name comes from the valves. They’re arranged vertically, side-by-side, with their heads almost touching—like nails driven into the block. This made the engine tall, narrow, and completely different from Chevrolet’s staggered-valve small-block or Cadillac’s wedge-head designs .

Why does this matter? Because narrow engines fit into low hoodlines. And Bill Mitchell’s knife-edged 1963 Riviera needed a low hoodline. The Nailhead made the Riviera possible.

401 cubic inches (6.6 liters): Standard equipment 1963–1966. 325 horsepower at 4,400 rpm, 445 lb-ft of torque at 2,800 rpm . Compression ratio: 10.25:1. Fuel economy: 10–12 mpg if you were gentle, 8 mpg if you weren’t .

425 cubic inches (7.0 liters): Optional 1964–1966. 340 horsepower base, 360 with the “Super Wildcat” dual-quad setup . Torque: 465 lb-ft. This engine turned the Riviera into a genuine 130-mph car .

What the Nailhead felt like: Torque. Always torque. The 401 peaked at 2,800 rpm and stayed flat. You didn’t wind it out; you just mashed the pedal and the horizon got closer. Contemporary testers clocked 0-60 in 8 seconds —not fast by modern standards, but immediate and effortless in 1965 .

The transmission: A three-speed automatic called Twin Turbine Dynaflow, later replaced by the Super Turbine 400. A three-speed manual was technically available. Nobody bought it .

Today: The Nailhead is respected but not worshipped. Parts availability is decent. A rebuilt 401 costs $5,000–$8,000. Original 1963–1965 Rivieras with documented Nailheads command $40,000–$80,000 in top condition .

Act Two: The Big-Block Peak (1967–1970) – 430 and 455 Glory

1967: The Nailhead dies. After fourteen years, Buick replaces it with an all-new 430 cubic inch V8. Same external dimensions, completely different internals. Modern thin-wall casting. Lighter. Stronger. Cleaner-burning .

Specs: 360 horsepower at 5,000 rpm, 475 lb-ft of torque at 3,200 rpm . Compression ratio: 10.25:1. One owner wrote decades later: “I can personally attest to the torque aspect of this engine… it was a BEAST!” .

1967–1969 production: Approximately 220,000 Rivieras across these three years, the vast majority with 430 power. The Gran Sport package remained optional, adding dual exhaust, firmer suspension, and 3.42 positraction rear gears .

1970: The 430 grows to 455 cubic inches (7.5 liters) . Bore and stroke: 4.3125 x 3.90 inches. Compression: 10:1. Horsepower: 370 at 4,600 rpm. Torque: 510 lb-ft at 2,800 rpm .

Let’s put that 510 lb-ft number in perspective.

A 1970 Chevrolet Chevelle SS454 made 450 lb-ft. A 1970 Cadillac Eldorado made 490 lb-ft. A 1970 Plymouth Hemi Cuda made 490 lb-ft. Buick’s luxury coupe, the one with the vinyl roof and the power windows, made more torque than a Hemi.

The Gran Sport 455: Not a different engine. Same 455 block, same heads, same crank. The GS package added a different camshaft, recalibrated carburetor, and the 3.42 rear gear. Horsepower remained 370; the difference was throttle response .

1970 production: 37,336 Rivieras built. Unknown percentage with GS package. The 455 would carry through 1976, but 1970 was the high-water mark—the last year before compression dropped, before the ratings changed, before the world caught up .

Act Three: The Emissions Years (1971–1976) – Paper Losses, Real Gains

Here’s where the Riviera V8 story gets complicated—and where most casual enthusiasts get it wrong.

1971: Federal regulations mandate lower compression for unleaded fuel. Buick drops the 455’s ratio from 10:1 to 8.5:1 . Same bore, same stroke, same block, same heads. Just less squeeze .

Gross horsepower: 370 → 315. Gross torque: 510 lb-ft → 450 lb-ft .

Is the engine weaker? Yes. But the difference between 510 and 450 lb-ft is not as dramatic as the numbers suggest. The 1971 455 still moved a 4,500-pound boattail with genuine authority. Road & Track reported 0-60 in 8.5 seconds—hardly crippled .

The 1971 Gran Sport Stage 1: This is the one collectors hunt. Special engine code TA. .125-inch oversized valves, special camshaft, heavy-duty valve springs, deep-sump oil pump . 330 horsepower, 455 lb-ft torque .

Production? No one knows exactly. Several hundred, maybe. Definitely rare .

1972: The year everything looked worse on paper.

The SAE changed the rules. Before 1972, manufacturers rated engines “gross”—no accessories, no air cleaner, open exhaust headers. After 1972, they rated them “net”—with all accessories, air cleaner, and production exhaust systems installed.

The 455 engine did not change. The measurement did.

1972 net ratings: 250 horsepower at 4,000 rpm, 375 lb-ft torque at 2,800 rpm . Engine code: WF.

1972 Stage 1 net ratings: 260 horsepower, 380 lb-ft . Engine code: WA.

*One Buick engineer who helped develop these engines later said the 1972 Stage 1’s power drop was “only on paper, not in its performance” * .

1973: Same 455. Same 8.5:1 compression. Same net ratings. New engine code: XF (base), XA (Stage 1). Federal 5-mph bumpers add 200 pounds. The boattail becomes a barge .

1974–1976: The 455 soldiers on, but the Riviera’s identity is shifting. The boattail is dead; the fourth generation is handsome but conventional. Power ratings creep downward—by 1976, the 455 is barely breaking 200 net horsepower. But the bottom end, the rotating assembly, the block itself remains the same robust design that produced 510 lb-ft six years earlier .

The 455’s legacy: Bulletproof. Understressed. Overbuilt. Properly maintained, these engines run 200,000 miles without complaint. Many are still running today .

Timeline: Riviera V8 Power Through the Classic Eras

1963–1964 – 401 Nailhead V8, 325 hp. Optional 425 Nailhead, 340 hp. 0-60: 8 seconds .

1965 – 401 standard (325 hp), 425 optional (360 hp with dual quads). Clamshell headlights debut .

1966 – Final year for Nailhead. 425 remains standard. Gran Sport package now includes dual exhaust and positraction .

1967 – All-new 430 V8 replaces Nailhead. 360 hp, 475 lb-ft. Engine lighter, stronger, cleaner .

1968–1969 – 430 continues. Minor grille and taillight changes. Performance steady .

1970 – 455 debuts. 370 hp, 510 lb-ft. Peak of the power curve. Gran Sport 455 available .

1971 – Compression drops to 8.5:1. 455 now rated 315 hp (gross). Stage 1 option offers 330 hp. MaxTrac traction control introduced .

1972 – Switch from gross to net ratings. Same 455 now “rated” 250 hp. Performance unchanged. Stage 1 “rated” 260 hp .

1973 – Final year of boattail. 455 carries over. Federal bumpers add weight. Stage 1 still available .

1974–1976 – Fourth generation Riviera. 455 continues with gradually declining power. By 1976, the muscle is memory .

1977–1978 – Fifth generation. Downsized. Buick 350 and Oldsmobile 403 replace 455. 155–185 hp. The era ends .

1979–1985 – Sixth generation. Turbo V6 available. V8 options dwindle to 307 Oldsmobile. 140 hp by 1985. The heart is still there, barely .

The Forgotten Tech: MaxTrac Traction Control (1971–1973)

Here’s something nobody remembers: Buick had electronic traction control before BMW, before Mercedes, before ABS was even a prototype.

MaxTrac was developed by AC Spark Plug Division. Components:

  • A sensor disc mounted on the left front wheel hub
  • A transmission-mounted sensor tied to the speedometer drive
  • A solid-state electronic controller
  • An on-off switch on the dashboard

How it worked: The controller compared front wheel speed (non-driven) to transmission output speed (driven). When the driven wheels exceeded the front wheels by 10 percent or more—spin detected—the controller interrupted the ignition system . Spark cut. Power dropped. Spin stopped. Spark restored.

*Road & Track wrote in 1971: “The interruptions were hardly noticeable to any driver.” *

Cost: Approximately $100 option. Buyers: Almost none. MaxTrac disappeared after 1973 .

Why it failed: The 1971–1973 boattail Riviera was a 4,500-pound luxury coupe, not a Corvette. Its buyers weren’t drag racing. They didn’t need wheelspin protection; they needed curb weight protection. MaxTrac was a solution to a problem nobody had .

Legacy: Forgotten. Unloved. Historically fascinating. If you find a 1971–1973 Riviera with the MaxTrac switch still intact, photograph it and call a museum .

Chart: Riviera V8 Power – Gross vs. Net, Peak vs. Reality

Note: 1972–1976 figures are SAE net ratings. Engines mechanically similar to 1971, but rated differently. 1978 and 1985 figures reflect downsized engines .

Act Four: The Downsized Years (1977–1985) – Small Block, Big Heart

1977: The Riviera shrinks. New B-body platform. Weight drops by nearly 800 pounds. The 455 is gone.

Engines:

  • Buick 350: 155–170 horsepower, 275–290 lb-ft torque
  • Oldsmobile 403: 185 horsepower, 320 lb-ft torque

Performance: 0-60 in 10–11 seconds. Top speed 110–115 mph. Not fast. Also not embarrassing—the new Riviera was lighter and handled better than the boattail .

1979–1985: Sixth generation. Turbo V6 becomes the performance story. But the V8 refuses to die.

The Oldsmobile 307: 140–150 horsepower, 245–255 lb-ft torque. Standard equipment in most 1980–1985 Rivieras. Acceleration: 0-60 in 11–12 seconds .

What these cars lack in power, they make up in presence. The 1978–1985 Riviera is the last of the traditional American personal luxury coupes—long hood, short deck, opera windows optional. The 307 V8 won’t thrill you, but it will cruise at 80 mph all day and ask for nothing but gas .

Collector status: Rising slowly. Values currently $5,000–$20,000 depending on condition and options . The 75th Anniversary “LXXV” cars are the ones to watch .

The Gran Sport and Stage 1: Separating Legend from Hardware

Let’s clarify the performance packages, because the internet gets this wrong constantly.

Gran Sport (1965–1972):

  • Not a different engine in 1965–1969. The GS package was suspension, exhaust, rear axle, and badges .
  • 1970–1972 GS 455: Standard 455 engine with GS camshaft and calibration. Not the Stage 1. Engine code not unique .

Stage 1 (1971–1973):

  • Oversized valves: .125-inch larger intake and exhaust .
  • Special camshaft: Higher lift, longer duration .
  • Heavy-duty valve springs: Required for the hotter cam .
  • Deep-sump oil pump: Better lubrication at high rpm .
  • Unique calibration: Carburetor and distributor tuned for the package .

1971 Stage 1: 330 gross hp, 455 gross lb-ft. Engine code TA. Estimated production: under 1,000 across all Buick models, Riviera share unknown .

1972 Stage 1: 260 net hp, 380 net lb-ft. Engine code WA. Performance unchanged from 1971; measurement changed .

1973 Stage 1: Same hardware, engine code XA. Production even lower .

The 1973 oddity: Stage 1 became a standalone option, not bundled with the GS package. You could order a base Riviera with the Stage 1 engine. Almost nobody did .

Today: A documented, original 1971–1973 Stage 1 Riviera is a six-figure car. Unrestored examples trade privately at sums that make auction records meaningless .

FAQ: Your Buick Riviera V8 Questions, Answered

What was the most powerful Riviera V8?
1970 455 Gran Sport: 370 horsepower (gross), 510 lb-ft torque (gross). The 1971 Stage 1 made 330 hp, but with lower compression and more restrictive emissions calibration .

Is the Nailhead a good engine?
Yes. Durable, torquey, and distinctive. Parts availability is good, but the aftermarket never embraced it like Chevrolet’s small-block. A rebuilt Nailhead costs more than a comparable Chevy engine .

What killed the Riviera’s performance?
Three things: Federal emissions regulations (lower compression, 1971), the switch to net power ratings (1972, made numbers look worse), and the 1973 oil crisis (killed demand for big engines). The hardware stayed strong; the context collapsed .

Are 1972–1976 455s any good?
Yes. The bottom end is identical to the 1970–1971 engines. Compression is lower, but the blocks are robust and respond well to aftermarket heads and camshafts. A 1972–1976 455 with modern aluminum heads is a genuine 450–500 hp combination .

How rare is a Stage 1 Riviera?
Extremely. Buick never released production numbers broken down by model, but total Stage 1 engine production across all 1971–1973 Buicks (Riviera, Skylark, LeSabre, Centurion, Estate Wagon) was probably under 3,000. Riviera-specific cars are needle-haystack rare .

What’s the best Riviera V8 for a collector?
Investment pick: 1970 GS 455. Peak power, peak styling, peak collectability . Driver pick: 1971–1972 boattail with base 455. Lower buy-in, still plenty of torque, and you won’t feel guilty driving it . Budget pick: 1978–1979 with 403 Olds. $10,000–$15,000 buys a lot of car .

What is MaxTrac, and should I care?
MaxTrac was Buick’s 1971–1973 electronic traction control system. It worked, nobody bought it, and it disappeared. If your Riviera has it, do not remove it—you’re driving a museum piece .

Can I put a 455 in a 1963–1965 Riviera?
Yes. The engine bays are similar, motor mounts exist, and the Turbo 400 transmission bolts up. It’s a common swap. Purists will frown. Torque addicts will smile .

Why did Buick stop making V8 Rivieras?
Fuel economy regulations, CAFE standards, and a changing market. By 1985, the personal luxury coupe buyer wanted image, not acceleration. Buick gave them the turbo V6 and eventually front-wheel drive. The V8 died because the customer stopped asking for it .

The Verdict: Why the Riviera V8 Still Matters

The Buick Riviera V8 story is not the story of a single engine. It’s the story of how American power grew, peaked, adapted, and finally faded over twenty-two years.

The Nailhead was brilliant, weird, and irreplaceable—a engine designed before the Interstate highway system, still pulling hard when men were walking on the moon.

The 430 was the bridge, modernizing Buick’s V8 architecture while preserving its torque-first character.

The 455 was the peak. Not the most powerful engine of its era—the Hemi and the 454 LS6 made more horsepower. But 510 lb-ft of torque at 2,800 rpm is not a statistic; it’s a feeling. It’s the feeling of a 4,500-pound luxury coupe accelerating from a stoplight without breaking a sweat, without downshifting, without drama. Just torque. Always torque.

The 350, 403, and 307 were the denouement. They kept the Riviera alive when the market had moved on. They’re not heroes. They’re survivors.

And that’s the point.

The Riviera’s V8s never won at Le Mans. They never powered a million muscle cars. They just showed up, every morning, for thirty-five years, and moved big heavy coupes with quiet authority.

That’s not failure. That’s fidelity.

Which Riviera V8 era speaks to you—the Nailhead’s weird genius, the 455’s torque-monster glory, or the forgotten 403s and 307s of the late ’70s? Drop a comment and tell us about the Riviera that made you look twice.
